How to Use Windows Memory Diagnostic to Improve Memory Performance

Windows Memory Diagnostic is a built-in tool for checking potential issues with your computer’s RAM (Random Access Memory). Faulty RAM can cause crashes, slow performance, or unexpected restarts. This guide will walk you through how to use this tool effectively, along with additional tips for troubleshooting and improving memory performance.

What is RAM and Why Is It Important?

RAM is temporary storage your computer uses to process active tasks. Whether you’re editing documents, streaming videos, or playing games, RAM enables smooth multitasking. If your computer starts lagging or crashing, one of the culprits could be faulty RAM.

Common RAM Issues

Here are some typical symptoms of RAM-related problems:

• Sudden application crashes.
• Frequent “blue screen of death” (BSOD) errors.
• Slower system performance.
• Random restarts or freezing.

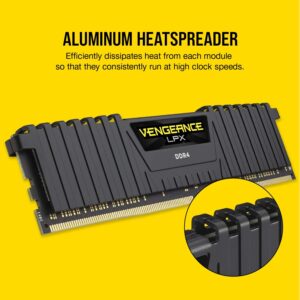

CORSAIR VENGEANCE LPX DDR4 RAM 32GB (2x16GB) 3200MHz CL16-20-20-38 1.35V Intel AMD Desktop Computer Memory

• Hand-sorted memory chips ensure high performance with generous overclocking headroom
• VENGEANCE LPX is optimized for wide compatibility with the latest Intel and AMD DDR4 motherboards
• A low-profile height of just 34mm ensures that VENGEANCE LPX even fits in most small-form-factor builds
• A solid aluminum heatspreader efficiently dissipates heat from each module so that they consistently run at high clock speeds
• Supports Intel XMP 2.0 for simple one-setting installation and setup
• Available in multiple colors to match the style of your system
• Overclocking overhead is limited by operating temperature. The unique design of the VENGEANCE LPX heat spreader optimally pulls heat away from the ICs and into your system’s cooling path, so you can push it harder

How to Run Windows Memory Diagnostic

1. Access the Tool:
   • Press Win + R, type mdsched, and hit Enter.
   • Choose “Restart now and check for problems” to run the test immediately. Alternatively, select “Check for problems the next time I start my computer” for a later check.
2. Running the Test:
   • Your computer will restart, and the diagnostic tool will begin checking your RAM. By default, it performs a Standard test, which is sufficient for most users.
3. Advanced Options:
   • Press F1 during the diagnostic screen to access options like Basic, Standard, or Extended tests.
   • Modify settings for cache use and test iterations if needed.
4. Viewing Results:
   • After the test, log into Windows. Results may appear as a notification.
   • If not, open Event Viewer by typing it in the Start menu. Navigate to Windows Logs > System and search for entries labeled MemoryDiagnostics-Results.

What to Do if RAM Errors Are Detected

• Re-seat the RAM: Open your PC and ensure the RAM modules are securely attached.
• Test Individual Modules: If you have multiple RAM sticks, test them one by one.
• Replace Faulty RAM: Persistent errors likely mean the module needs replacement.

Enhancing RAM Performance

Here are a few ways to optimize your system’s memory usage:

• Close Unnecessary Programs: Free up memory by exiting apps running in the background.
• Increase Virtual Memory: Adjust virtual memory settings to supplement your physical RAM.
• Upgrade RAM: Consider adding more memory for resource-intensive tasks like video editing or gaming.
• Use RAM Optimization Tools: Apps like MemTest86 offer detailed tests to complement Windows Memory Diagnostic.

FAQs

1. How long does the Windows Memory Diagnostic take?
It depends on the test type. Basic tests might finish in 10-15 minutes, while extended tests could take an hour or more.

2. Can I use my PC during the test?
No. The tool runs outside of Windows, and your system will be unavailable during the scan.

3. What if the computer doesn’t boot after a RAM error?
You can launch the diagnostic tool through the Windows Recovery Environment (WinRE). Use keys like F11 during startup to access advanced troubleshooting options.

4. Are there alternatives to Windows Memory Diagnostic?
Yes, third-party tools like MemTest86 or PassMark provide more detailed analysis.

Why You Should Regularly Check RAM

RAM issues might not always show clear signs but can degrade system performance over time. Regular diagnostics help prevent long-term hardware damage and keep your PC running smoothly.

Future Trends
With the rise of advanced applications, higher-capacity RAM (like DDR5) is becoming more common. Tools like Windows Memory Diagnostic will remain essential as systems evolve, ensuring performance and reliability for users.
